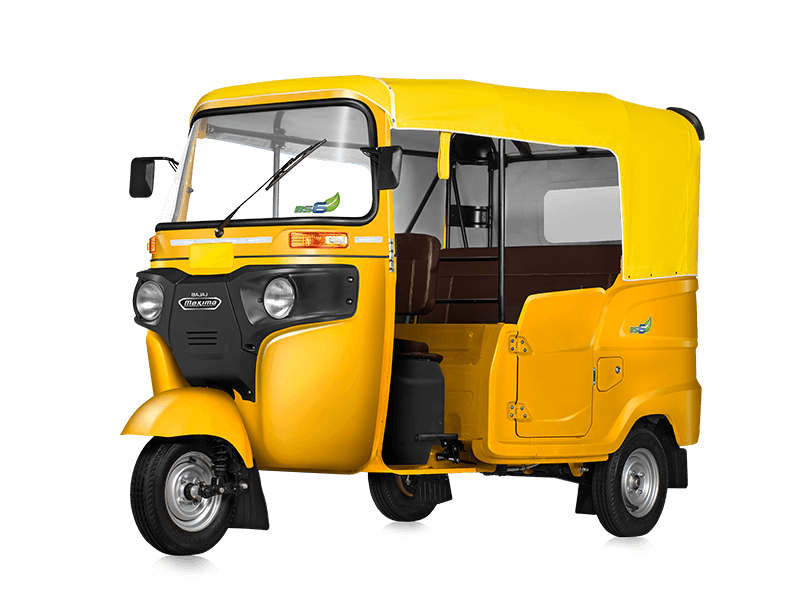

BAJAJ MAXIMA Z SPECIFICATIONS



ENGINE & PERFORMANCE

Description	Maxima Z CNG	Maxima Z Diesel	Maxima Z LPG
Engine displacement	236.2 cc	470.5 cc	236.2 cc
Maximum net power	7.1 kW @ 4500 rpm	6.24 kW @ 3000 rpm	8.1 kW @ 4750 rpm
Maximum net torque	16.2 Nm @ 3500 rpm	24 Nm @ 1800 rpm	17.55 Nm @ 3250 rpm
Gradeability	21% (11.9) max.	18% (10.2) max.	23% (13) max.

CONTROLS

Description	Maxima Z CNG	Maxima Z Diesel	Maxima Z LPG
Clutch	Wet, Multiplate	Dry, Singleplate	Wet, Multiplate
Brake - RH foot operated	Hydraulic- Drum	Hydraulic- Drum	Hydraulic- Drum

VEHICLE INFORMATION

Description	Maxima Z CNG	Maxima Z Diesel	Maxima Z LPG
Seating capacity	4 persons (with Driver)	4 persons (with Driver)	4 persons (with Driver)
Battery rating, Ah	12 V, 32 Ah	12 V, 32 Ah	12 V, 32 Ah
CNG/Diesel/LPG Tank Capacity	5.6 kg (40 L cylinder) at 0	8 L	20.6 L

DIMENSIONS

Description	Maxima Z CNG	Maxima Z Diesel	Maxima Z LPG
Wheel base	2000 mm	2000 mm	2000 mm
Overall width	1350 mm	1350 mm	1350 mm
Overall length	2835 mm	2835 mm	2835 mm
Overall height	1780 mm	1780 mm	1780 mm
Min. Ground clearance	194 mm	194 mm	194 mm
Maximum GVW (kg)	812	790	768
Kerb weight	482	460	438
