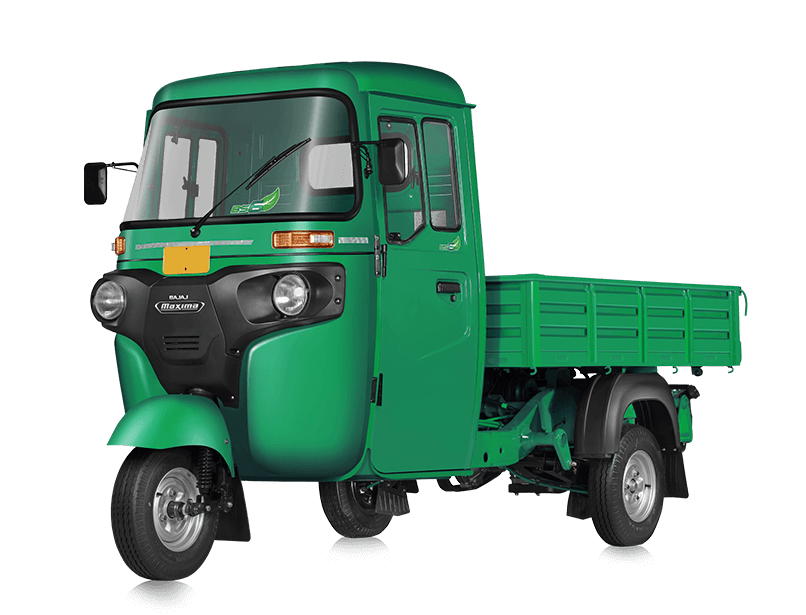

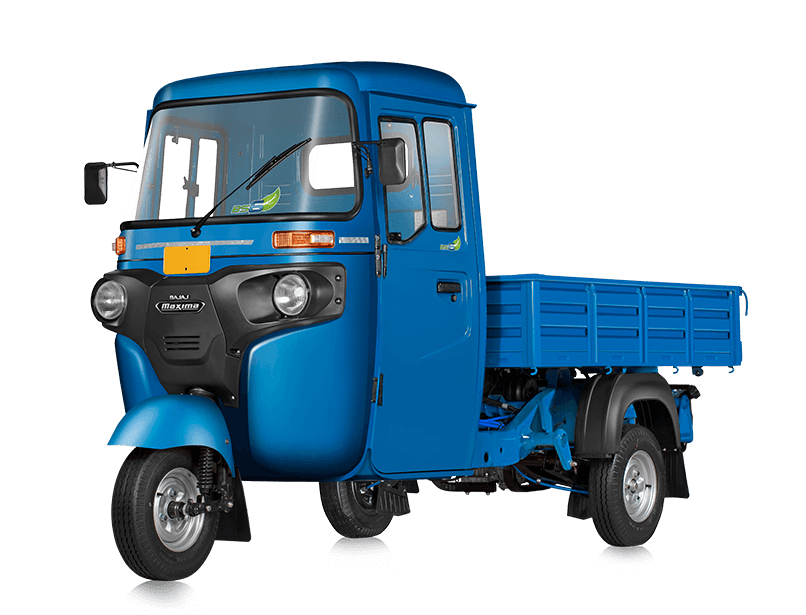

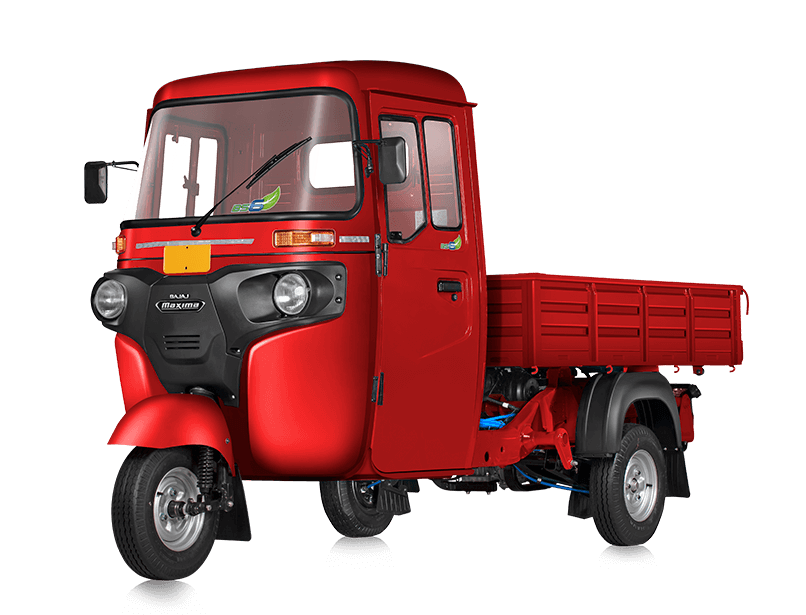

M BAJAJ MAXIMA C SPECIFICATIONS

ENGINE & PERFORMANCE

Description	Maxima C CNG	Maxima C Diesel
Engine displacement	236.2 cc	470.5 cc
Maximum net power	7.1 kW @ 4500 rpm	6.74 kW @ 3400 rpm
Maximum net torque	16.2 Nm @ 3500 rpm	23.18 Nm @ 2000 rpm
Gradeability	15% (8.53) max.	18% (10.2) max.

CONTROLS

Description	Maxima C CNG	Maxima C Diesel
Clutch	Wet, Multiplate	Dry, Singleplate
Brake - RH foot operated	Hydraulic- Drum	Hydraulic- Drum

VEHICLE INFORMATION

Description	Maxima C CNG	Maxima C Diesel
Seating capacity	1 ( Driver)	1 ( Driver)
Battery rating, Ah	12 V, 32 Ah	12 V, 32 Ah
CNG/Fuel Tank Capacity	5.6 kg (40 L cylinder) at 0	8 L

DIMENSIONS

Description	Maxima C CNG	Maxima C Diesel
Wheel base	2125 mm	2125 mm
Overall width	1493 mm	1493 mm
Overall length	3230 mm	3230 mm
Overall height	1818 mm	1818 mm
Min. Ground clearance	195 mm	193 mm
Maximum GVW (kg)	986	965
Kerb weight	556	535
