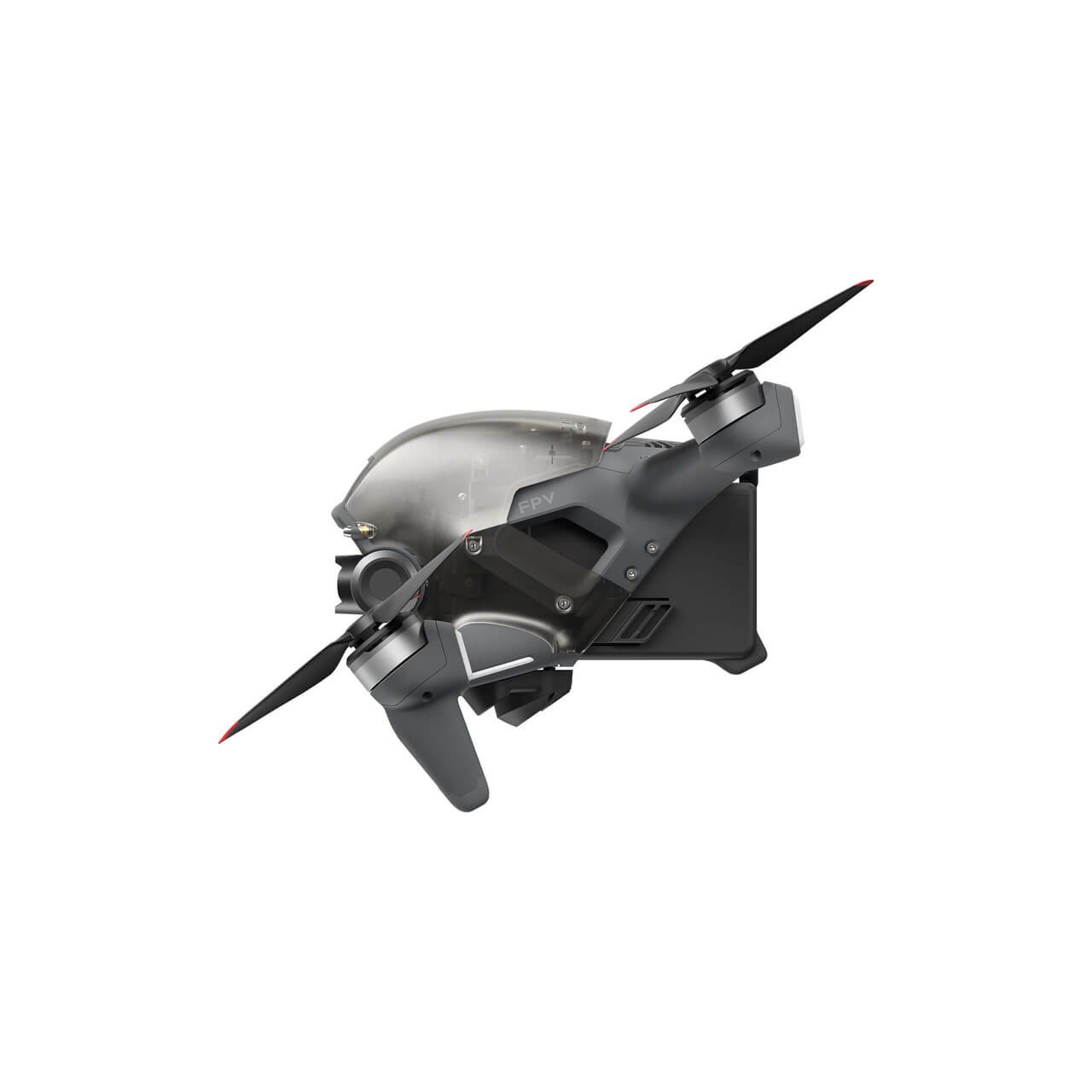

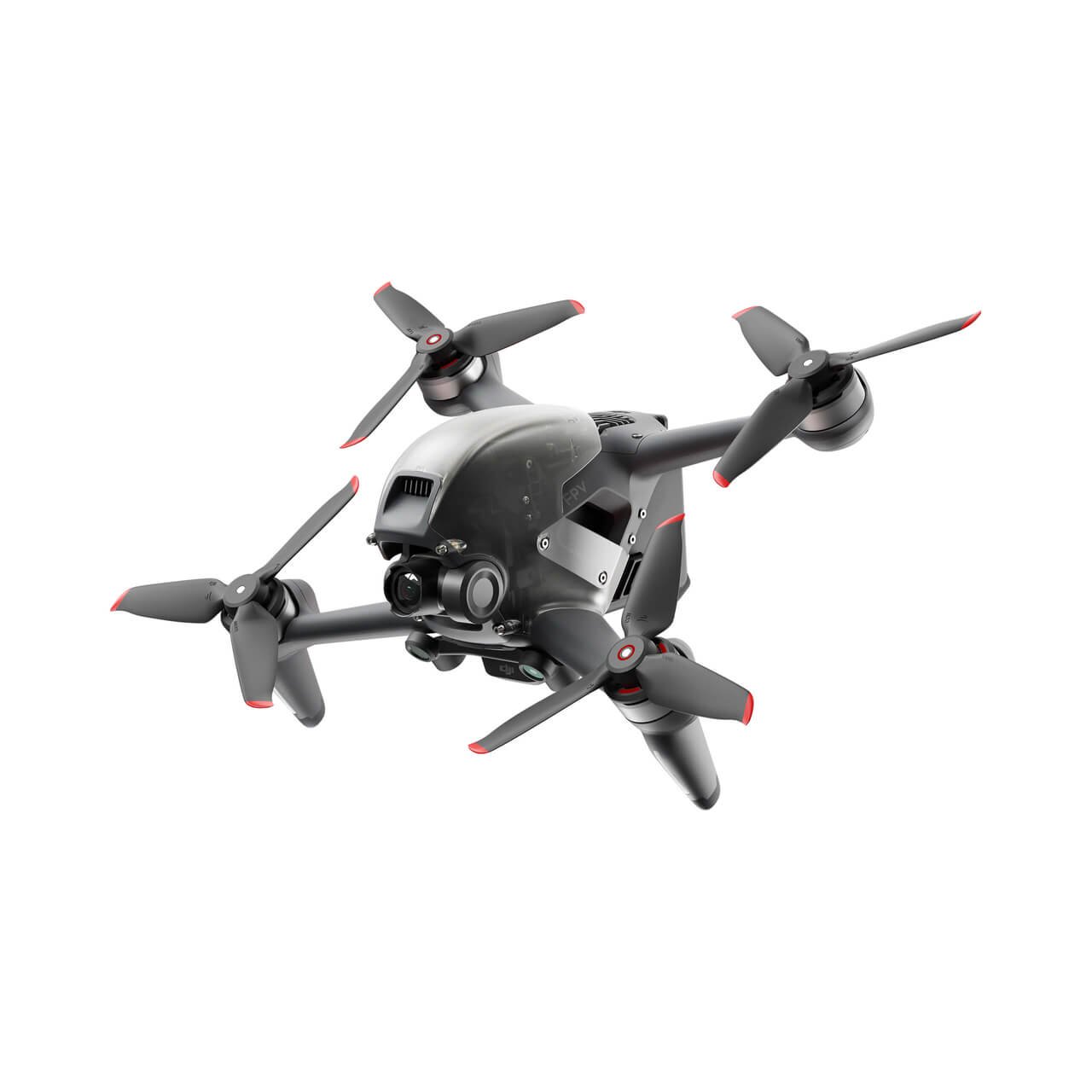

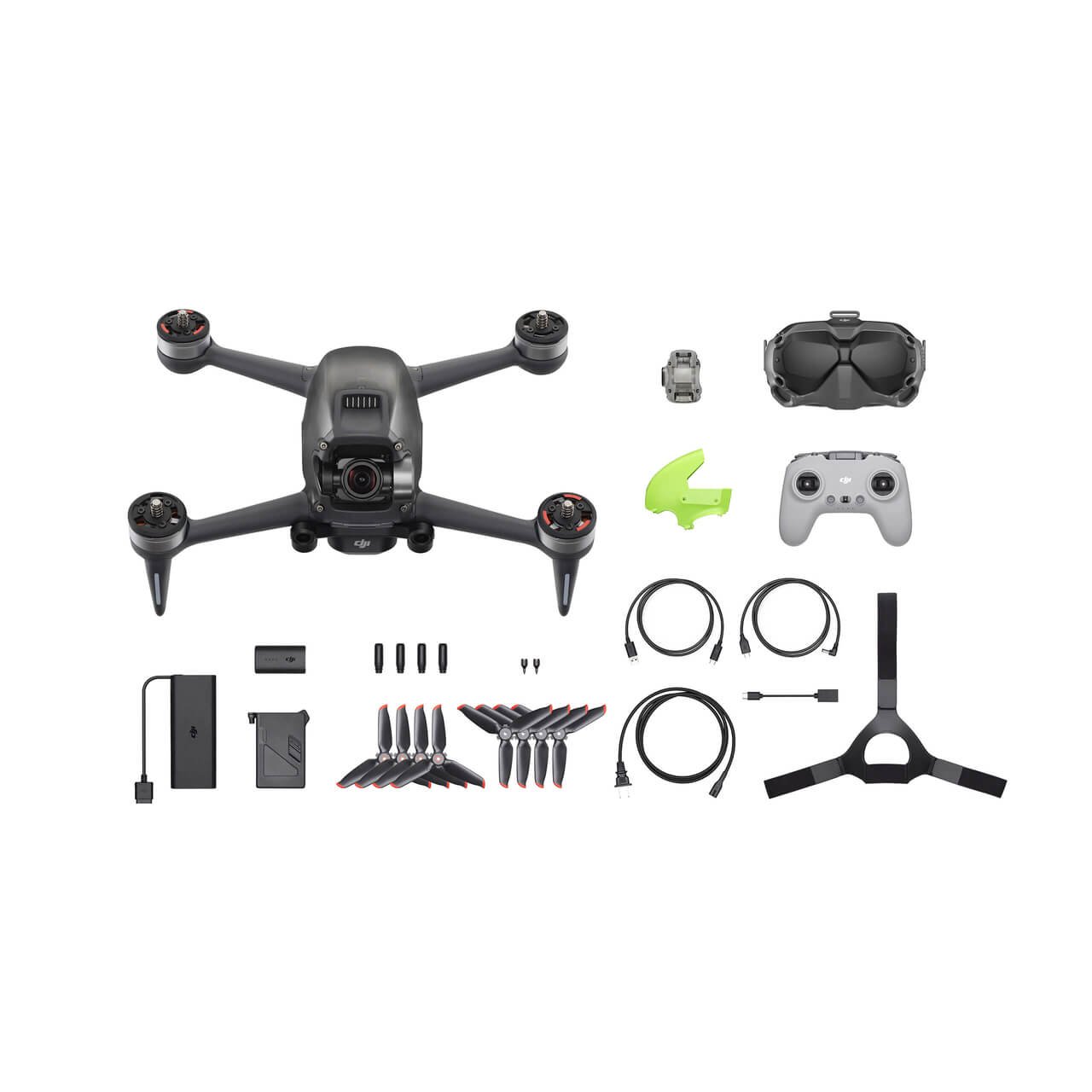

DJI FPV Combo

Specs

Camera

• Sensor

·        1/2.3” CMOS
Effective pixels: 12 million

• Lens

·        FOV: 150°
35mm Format Equivalent: 14.66 mm
Aperture: f/2.8
Focus Mode: Fixed Focus
Focus Range: 0.6 m to ∞

• ISO

·        100-12800

• Shutter Speed

·        1/50-1/8000 s

• Still Photography Modes

·        Single shot

• Max Image Size

·        3840×2160

• Photo Format

·        JPEG

• Video Resolution

·        4K: 3840×2160 at 50/60fps
FHD: 1920×1080 at 50/60/100/120fps

• Video Formats

·        MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC）

• Max Video Bitrate

·        120 Mbps

• Color Profile

·        Standard, D-Cinelike

• RockSteady EIS

·        Available

• Distortion Correction

·        Available

• Supported File Formats

·        exFAT (recommended)
FAT32

Charger

• Input

·        100-240 V, 50/60 Hz, 1.8 A

• Output

·        Battery charging interface:
25.2 V ± 0.1 V
3.57 A ± 0.1 A (high current)
1 A ± 0.2 A (low current)

USB Port:
5V/2A (×2)

• Rated Power

·        86 W

Intelligent Flight Battery

• Battery Capacity

·        2000 mAh

• Voltage

·        22.2 V

• Max Charging Voltage

·        25.2 V

• Battery Type

·        LiPo 6S

• Energy

·        44.4 Wh@0.5C

• Discharge Rate

·        Standard: 10C

• Weight

·        295 g

• Charging Temperature

·        5° to 40° C (41° to 104° F)

• Max Charging Power

·        90 W

Video Transmission

• Operating Frequency

·        2.400-2.4835 GHz
5.725-5.850 GHz

• Communication Bandwidth

·        40 MHz (Max.)

• Live View Mode

·        Low-Latency Mode: 810p/120fps ≤ 28ms
High-Quality Mode: 810p/60fps ≤ 40ms

• Max Video Bitrate

·        50 Mbps

• Transmission Range

·        10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

• Audio Transmission Support

·        Yes
